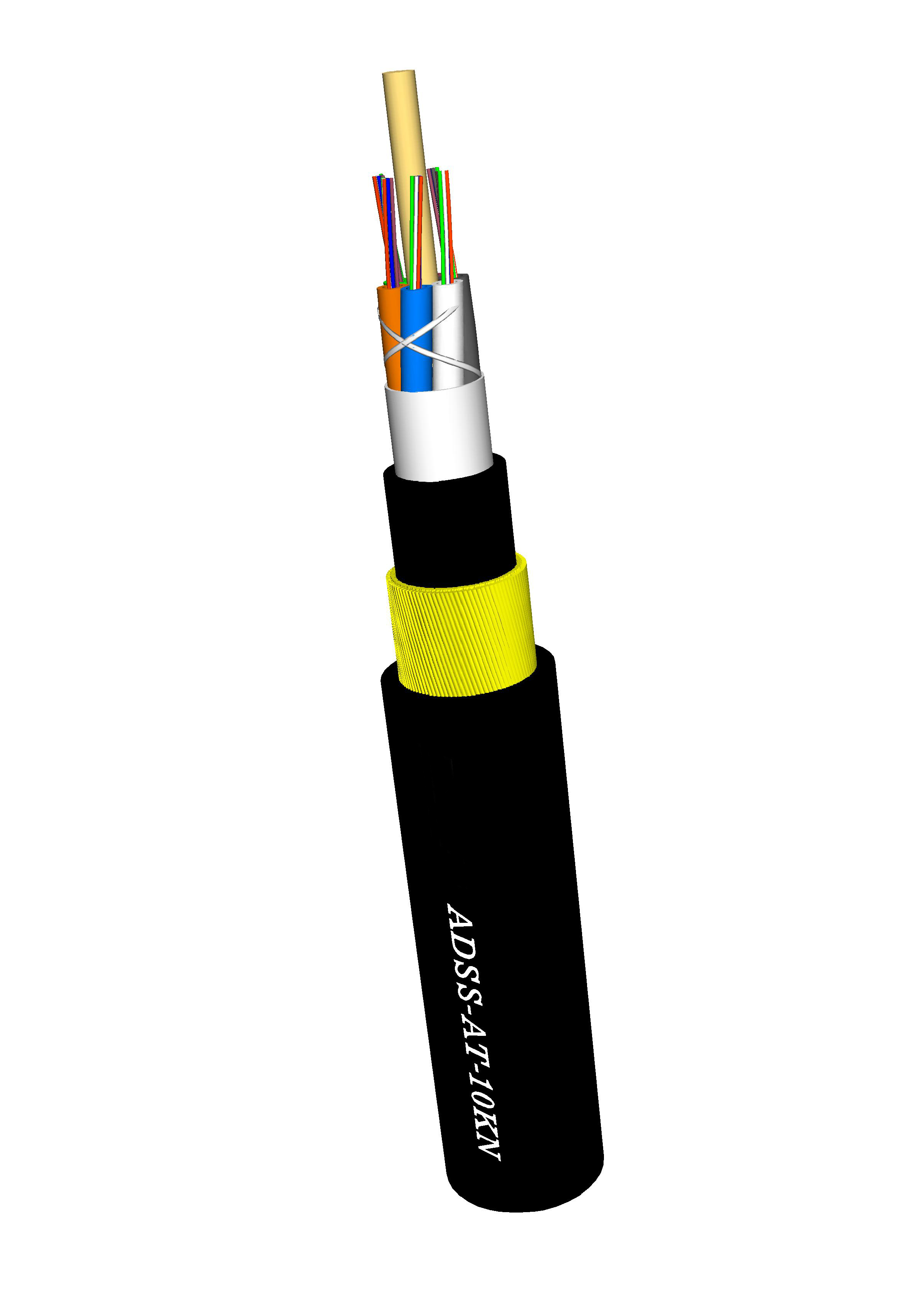

All Dielectric Self-supporting Aerial Cable (ADSS)

Product NameAll Dielectric Self-supporting Aerial Cable (ADSS)



Views:247

Phone Guestbook


<< Back>>


Product Description

Characteristics:
  1. Small cable diameter(adapt for bad climate), light weight, 350m span, low attached load on tower.

  2. Non-metal structure, good insulation, anti-thunder.Fine production technology, even force for aramid yarn, with superior stress flexibility.

Application:
  1. Erect on the same pole with power line in new and old power line.

  2. Areas of strong electric field, anti-thunder, etc.

  3. Long span communication system.


Technical Parameters:

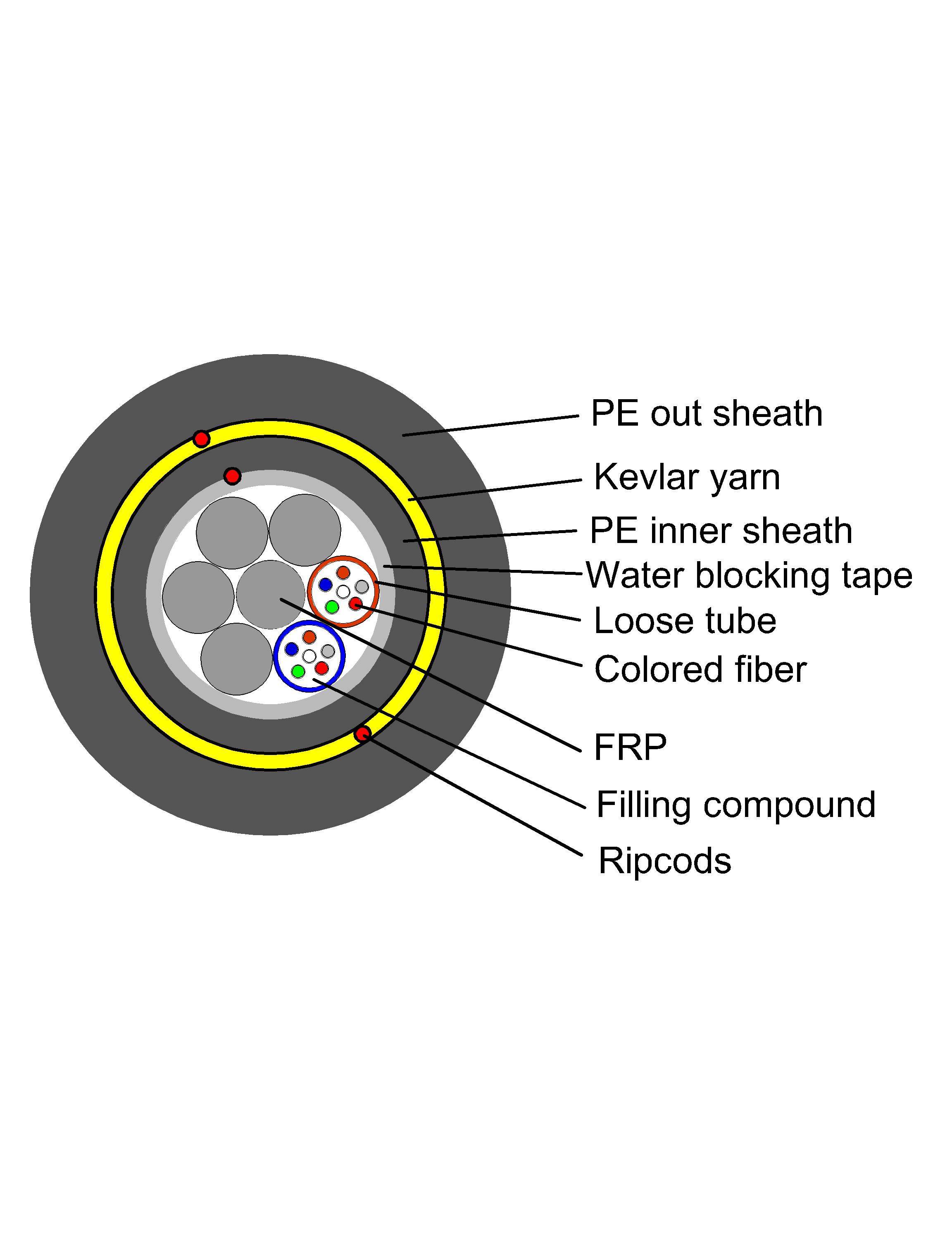

Construction of optical fiber cable.

Items

Description

Number of fiber

48

Number of loose tube

4

Number of fibers per tube

12

Number of fillers

2

Jacket

HDPE

Color of Jacket

Black

PE out sheath thickness

1.8±0.2mm

Loose tube diameter

2.6±0.1mm

FRP strength member diameter

2.6mm

RTS(KN)

24

MAT(KN)

10

EDS(KN)

3.6

Cable diameter

13.6±0.2mm

Approx. weight cable Kg/Km

145



Climate Characteristics:

Climate type

Wind speed(m/s)

Ice(mm)

Extra load(N/m)

A

25

0

0.7

B

35

0

0.7

C

10

5

2.5

D

10

10

4.4



Cable diameter(mm)

Cable weight(kg/km)

RTS(KN)

EDS(KN)

Temperature range()

Suitable span(m)

A

B

C

D

12.8±0.2

145

24

3.6

-40+70

370

250

350

250





Mechanical and environmental data:

Temperature range

Storage/Shipping temperature range

Operating temperature range

-40~ +70

Min. Bending Radius

(mm)

Dynamic

mm

20D

Static

mm

10D

Max. Crushing Resistance (N/100mm²)

Short-term

N/100mm²

4000

Long-term

N/100mm²

1000
