Characteristics:
-
Small cable diameter(adapt for bad climate), light weight, 80m span, low attached load on tower.
-
Non-metal structure, good insulation, anti-thunder.
Fine production technology, even force for aramid yarn, with superior stress flexibility.
Application:
-
Erect on the same pole with power line in new and old power line.
-
Areas of strong electric field, anti-thunder, etc.
Technical Parameters:

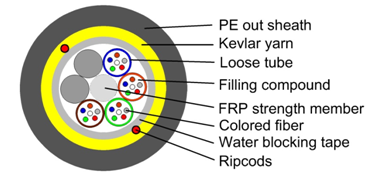

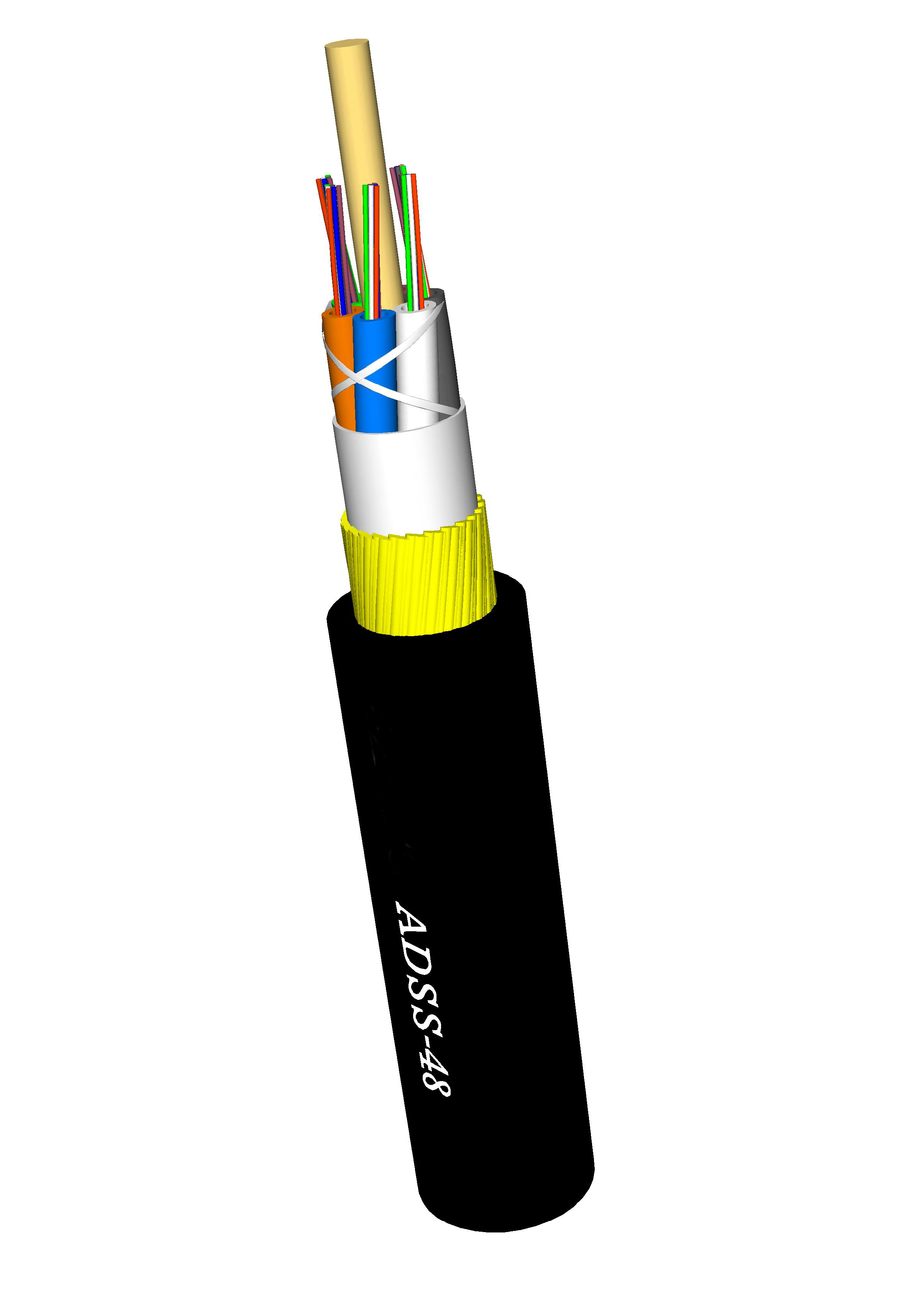

Construction of optical fiber cable.
|
Items
|
Description
|
|
Number of fiber
|
24
|
120
|
|
Number of loose tube
|
4
|
10
|
|
Number of fibers per tube
|
6
|
12
|
|
Number of fillers
|
1
|
0
|
|
Jacket
|
HDPE
|
HDPE
|
|
Color of Jacket
|
Black
|
Black
|
|
PE out sheath thickness
|
1.8±0.2mm
|
1.8±0.2mm
|
|
Loose tube diameter
|
2.2±0.1mm
|
2.4±0.1mm
|
|
FRP strength member diameter
|
2.2mm
|
3.0mm
|
|
RTS(KN)
|
8
|
10
|
|
MAT(KN)
|
3
|
4
|
|
EDS(KN)
|
1.2
|
1.5
|
|
Cable diameter
|
10.7±0.2mm
|
14.2±0.2mm
|
|
Approx. weight cable Kg/Km
|
90
|
158
|
Climate Characteristics:
|
Climate type
|
Wind speed(m/s)
|
Ice(mm)
|
Extra load(N/m)
|
|
A
|
25
|
0
|
0.7
|
|
B
|
35
|
0
|
0.7
|
|
C
|
10
|
5
|
2.5
|
|
D
|
10
|
10
|
4.4
|
|
Cable diameter(mm)
|
Cable weight(kg/km)
|
RTS(KN)
|
EDS(KN)
|
Temperature range(℃)
|
Suitable span(m)
|
|
A
|
B
|
C
|
D
|
|
10.7±0.2
|
90
|
8
|
1.2
|
-40～+70
|
140
|
80
|
120
|
80
|
Mechanical and environmental data:
|
Temperature range
|
Storage/Shipping temperature range
Operating temperature range
|
℃
|
-40℃ ~ +70℃
|
|
Min. Bending Radius
(mm)
|
Dynamic
|
mm
|
20D
|
|
Static
|
mm
|
10D
|
|
Max. Crushing Resistance (N/100mm²)
|
Short-term
|
N/100mm²
|
4000
|
|
Long-term
|
N/100mm²
|
1000
|
|
