Characteristics:
Filling compound protects fibers in loose tubes.
Galvanized steel wire armored.
Double sheath.
Application:
Short distance and under water communication
Adapted to outdoor distribution.
Suitable for duct, direct buried and under water method.

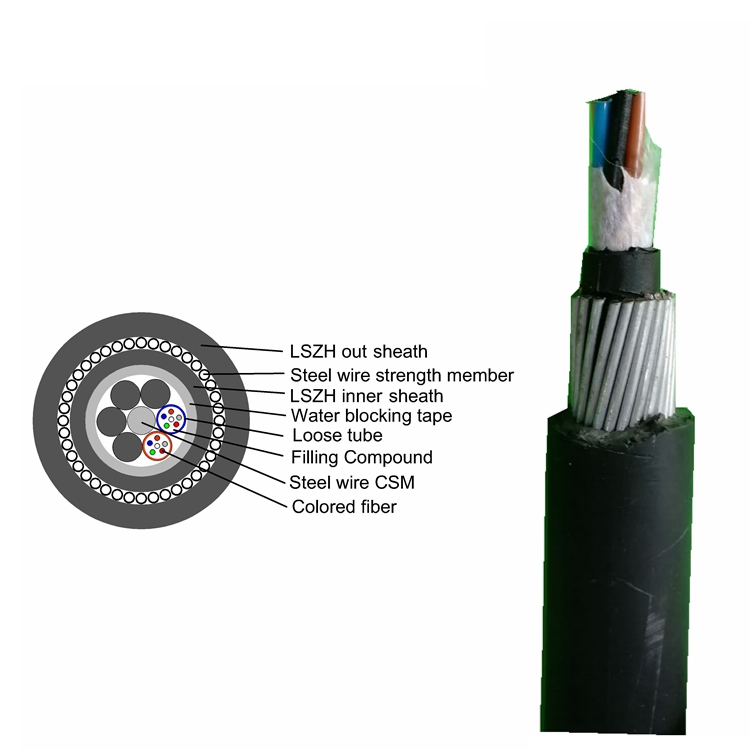

Construction:
Loose tube
1×Ф3.0mm
Fiber
OM4
Inner jacket
MDPE
Outer jacket
Water blocking system
Water Blocking glass yarn
Inner jacket thickness (mm)
1.5
Outer jacket thickness (mm)
1.8
Steel Wire Armored
24xФ 1.2 mm steel wire
Technical parameters:
item
Unit
Technical parameters
Count of fiber
Core
2~12
Fiber cable type
GYXTY33
Fiber cable diameter
mm
13.7±0.5
Cable weight
kg/km
340
Minimum allowable
Short term
N
5000
Long term
1000
Minimum allowable crush load
N/100mm
3000
Minimum bending radius
345
175
temperature
storage
℃
-40℃-+70℃
lay
-10℃-+50℃
Attenuation
dB/km
≤3.5(850nm)
≤1.5(1300nm)
Chromatographic identification
Blue、orange、green、brown、grey、white、red、black、yellow、violet、pink、aqua
/
Optical Performances: TT
Optical Transmission Performance
Single mode
1310 /1550/nm
Multimode
850/1300nm
9/125μm
(OS2)
62.5/125μm
(OM1)
50/125
μm
(OM2)
(OM3)
(OM4)
Max. Attenuation(dB/km)
0.36 /0.25
3.5/1.5
Typ. Attenuation(dB/km)
0.34 /0.21
2.7/0.6
2.5/0.7
2.3/0.6
Bandwidth (MHz/km)
N/A
200/600
500/500
1500/500
3500/500
850nm laser bandwidth(MHz/km)
2000
4700
Numerical aperture
0.13±0.01
0.275±0.015
0.200±0.015
