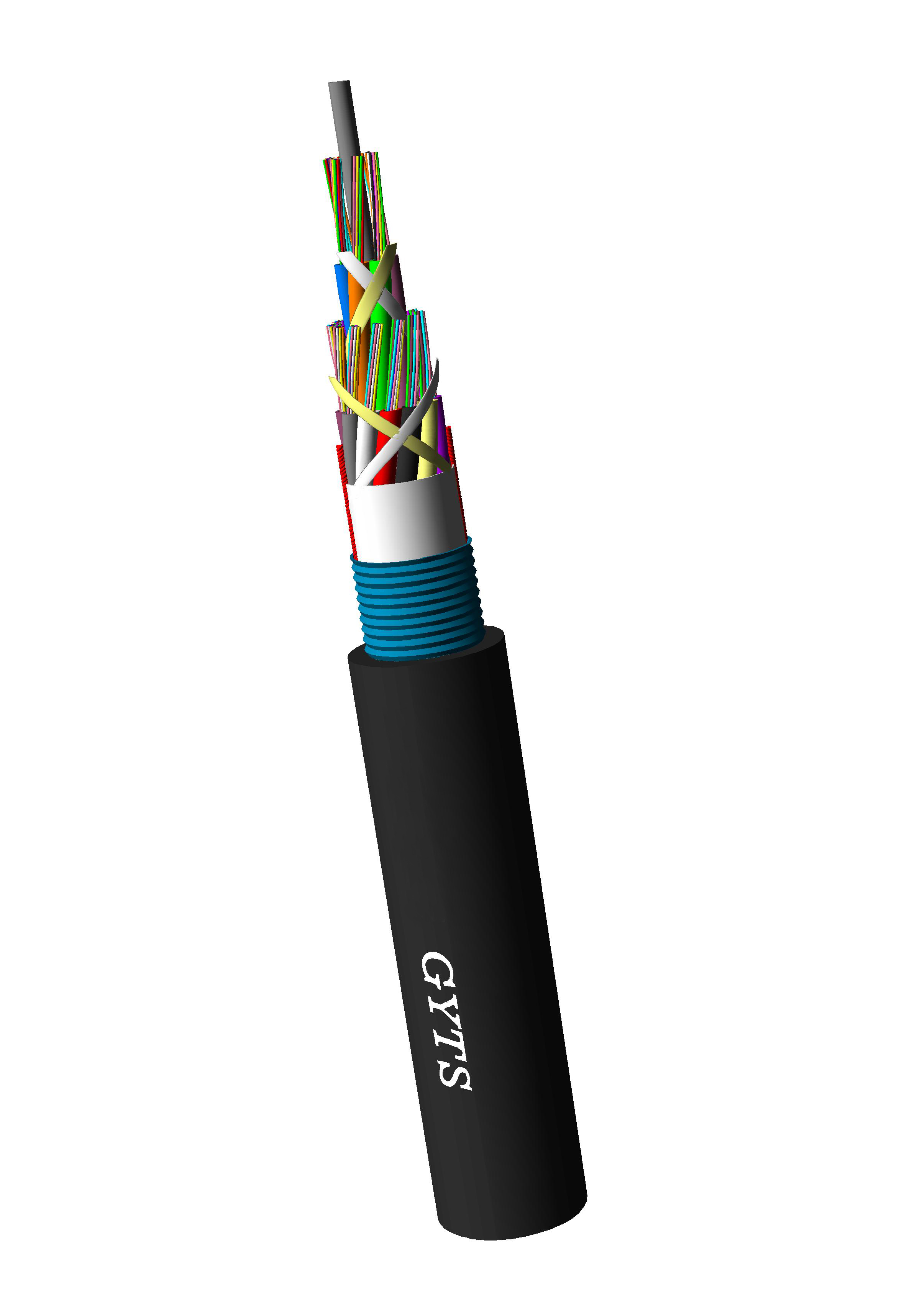

Loose tube stranded with steel tape armoured outdoor cable  (GYTS)

Product NameLoose tube stranded with steel tape armoured outdoor cable (GYTS)



Views:259

Phone Guestbook


<< Back>>


Product Description

Characteristics:
  1. Loose tubes (or some fillers) standed around the metal central strength member.

  2. Bound by corrugated longitudinal steel tape with outer LSZH jacket.

  3. The tube is made of good temperature property material.

  4. Good moisture-resistance and  ultra violet radiation resistant property.

Application:
  1. Adapted to Outdoor distribution.

  2. Long distance and local area network communication.


International standards:

IEC 60794-1;

ITU-T G.652D


Technical Parameters:

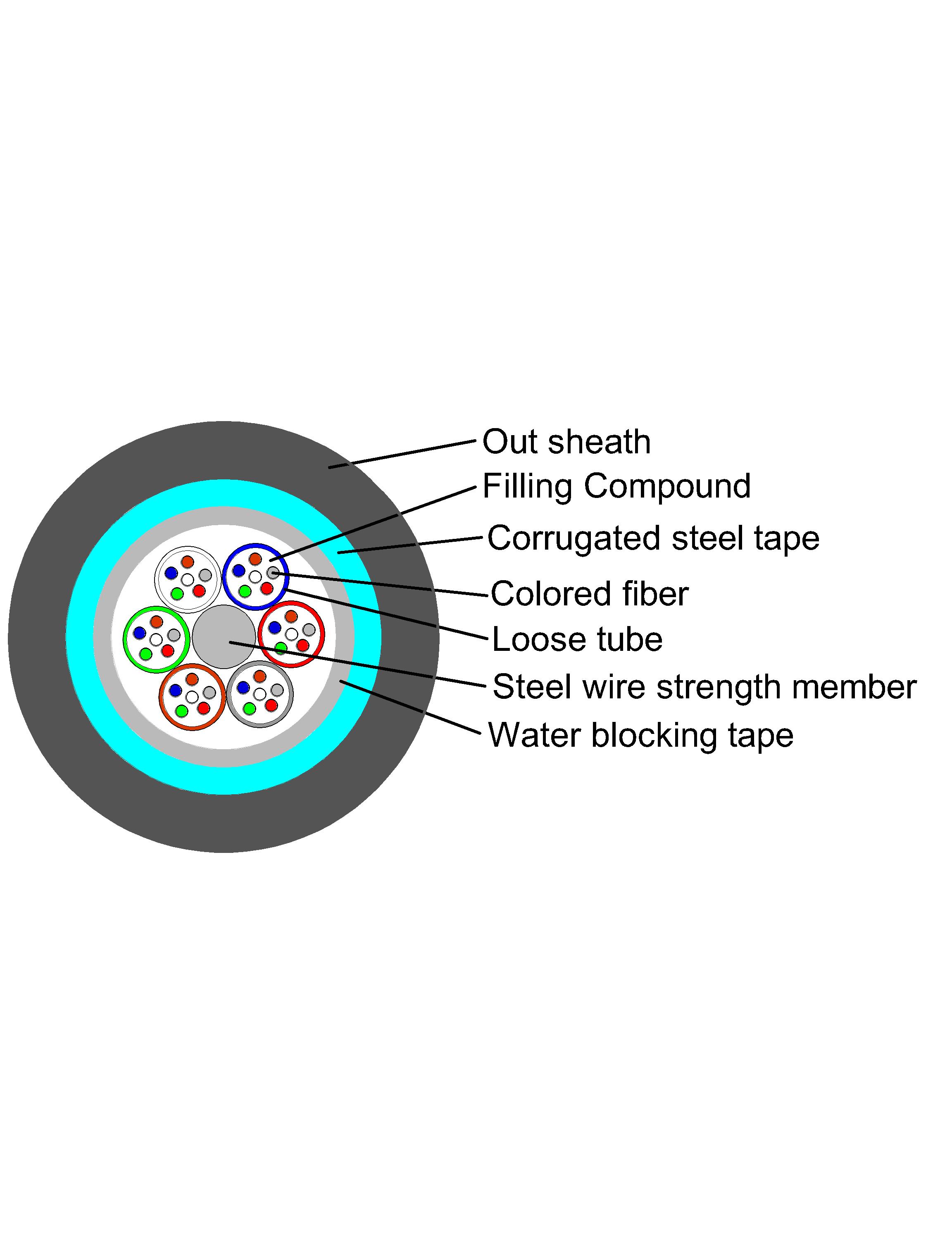

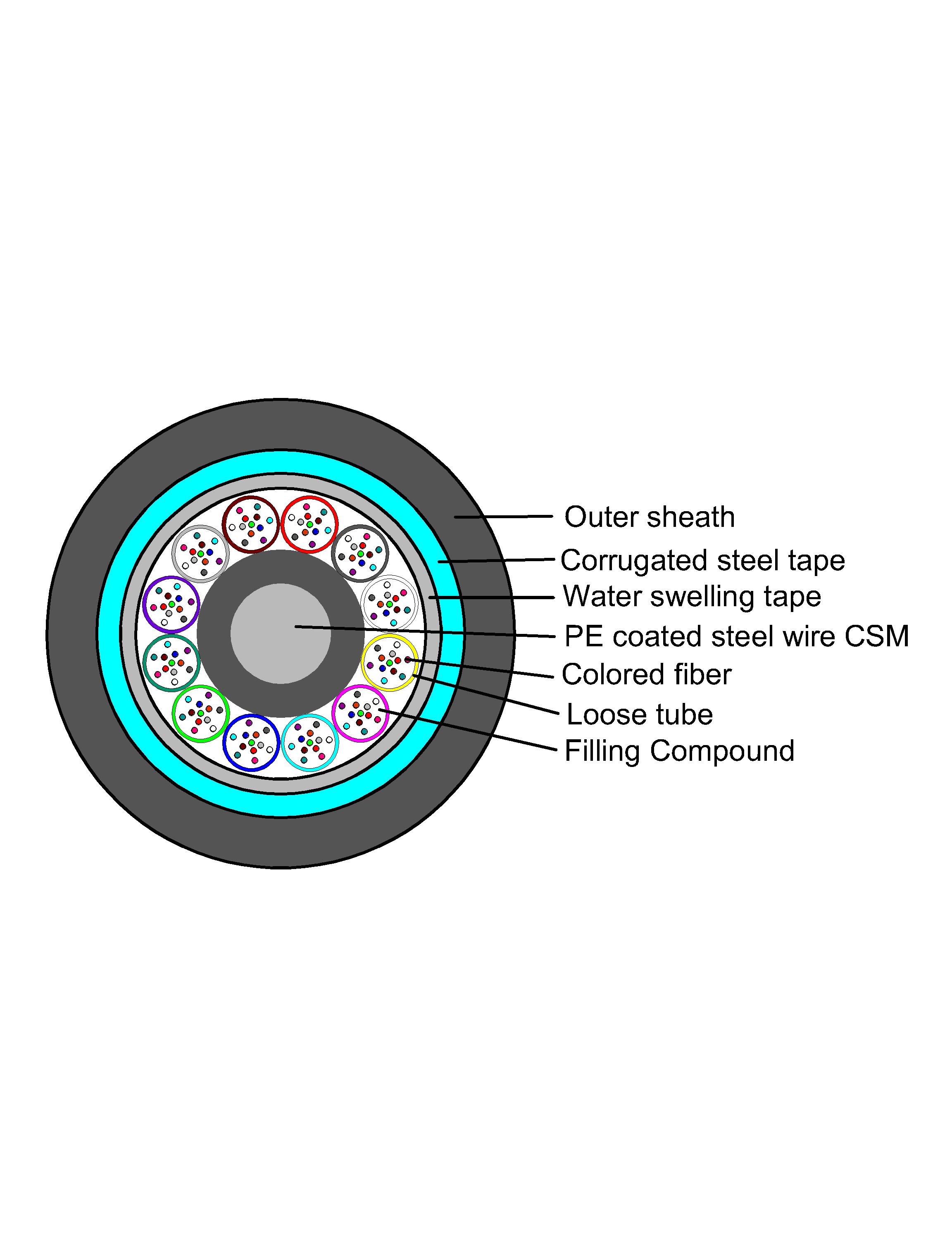

Construction of optical fiber cable.

Items

Description

Number of fibers

12

24

48

Number of loose tubes

2

4

6

Number of fiber per tube

6

6

8

Number of fillers

4

2

0

Jacket

PE

PE

PE

Color of Jacket

Black

Black

Black

Out sheath thickness

2.0±0.2mm

2.0±0.2mm

2.0±0.2mm

Loose tube diameter

1.8±0.1mm

1.8±0.1mm

1.8±0.1mm

steel strength member diameter

1.8mm

1.8mm

1.8mm

Cable diameter

11.3±0.2mm

11.3±0.2mm

11.3±0.2mm

Corrugated steel tape thickness

0.23mm

0.23mm

0.23mm

Approx. weight cable Kg/Km

130

130

130





Mechanical and environmental data:

Temperature range

Storage/Shipping temperature range

Operating temperature range

-20~ +70

Min. Bending Radius

(mm)

Dynamic

mm

20D

Static

mm

10D

Max. Tension (N)

Short-term

N

1500

Long-term

N

600

Max. Crushing Resistance (N/100mm²)

Short-term

N/100mm²

1000

Long-term

N/100mm²

300



 Optical Performances:

Optical Transmission Performance

Single mode

1310/1550nm

Multimode

850/1300nm

9/125μm

(OS2)

62.5/125μm

(OM1)

50/125

μm

(OM2)

50/125

μm

(OM3)

50/125

μm

(OM4)

Max.

Attenuation(dB/km)

0.36/0.25

3.5/1.5

3.5/1.5

3.5/1.5

3.5/1.5

Typ.

Attenuation(dB/km)

0.34/0.21

2.7/0.6

2.5/0.7

2.3/0.6

2.3/0.6

Bandwidth (MHz/km)

N/A

200/600

500/500

1500/500

3500/500

850nm laser bandwidth(MHz/km)

N/A

N/A

N/A

2000

4700

Numerical aperture

0.13±0.01

0.275±0.015

0.200±0.015

0.200±0.015

0.200±0.015
