Optic assembly

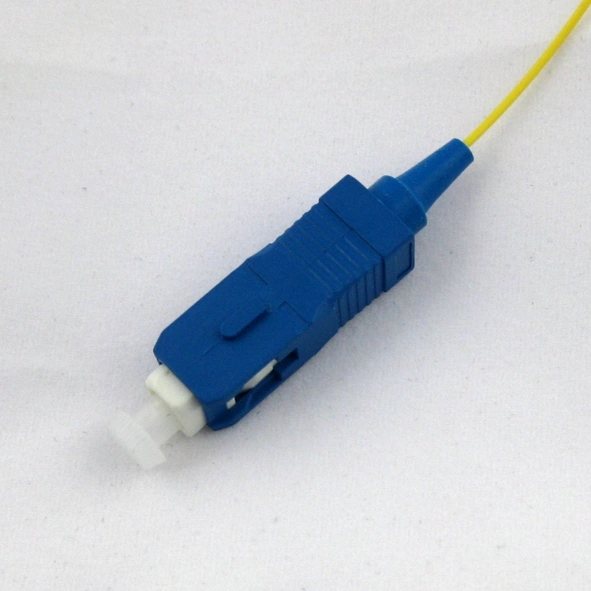

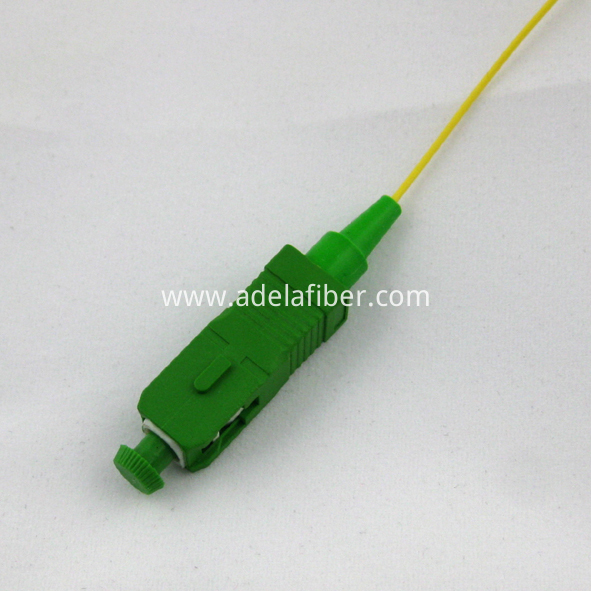

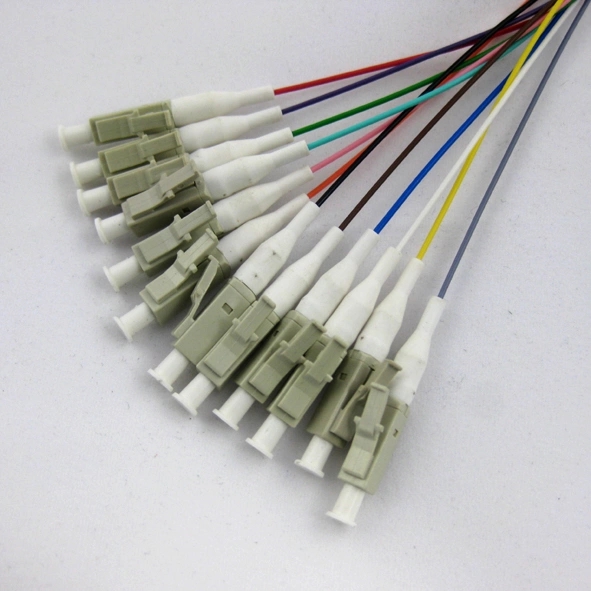

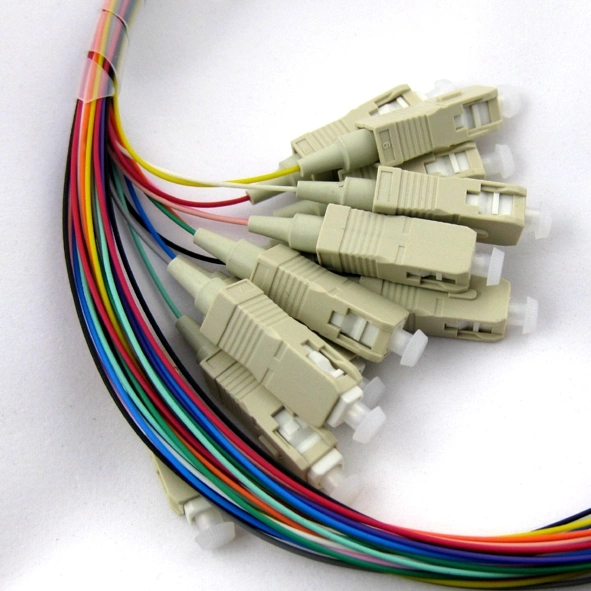

Product Name：LC/SC/ST pigtails

Product Description：

We supply LC Fiber Optic Pigtails ,including the single mode and multimode types , these LC fiber pigtails are with premium grade connectors and with typical 0.9mm outer daimeter cables . Simplex LC Fiber Pigtail and duplex LC fiber pigtails are available ,with different color ,cable diameter and jacket types optional .

LC Fiber Optic Pigtail connectors feature the RJ-45 style interface with low insertion loss and low back reflection ; it is with high precision alignment and is widely used all over the world . We supply both simplex LC and duplex LC cable . LC fiber pigtail cable can be single mode 9/125 or multimode 62.5/125 and 50/125 for OM2/OM3/OM4 .

Product Specifications

Connector A	LC	Connector B	Unterminated
Fiber Mode	9/125μm	Fiber Type	Simplex
Polish	UPC/APC	Cable Diameter	0.9mm
Jacket Material	PVC/LSZH	Jacket Color	Yellow
Wavelength	1310nm/1550nm	Durability	>1000 Times
Insertion Loss	≤0.2dB	Interchangeability	≤0.2dB
Return Loss	≥50dB	Vibration	≤0.2dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

Optic assembly
